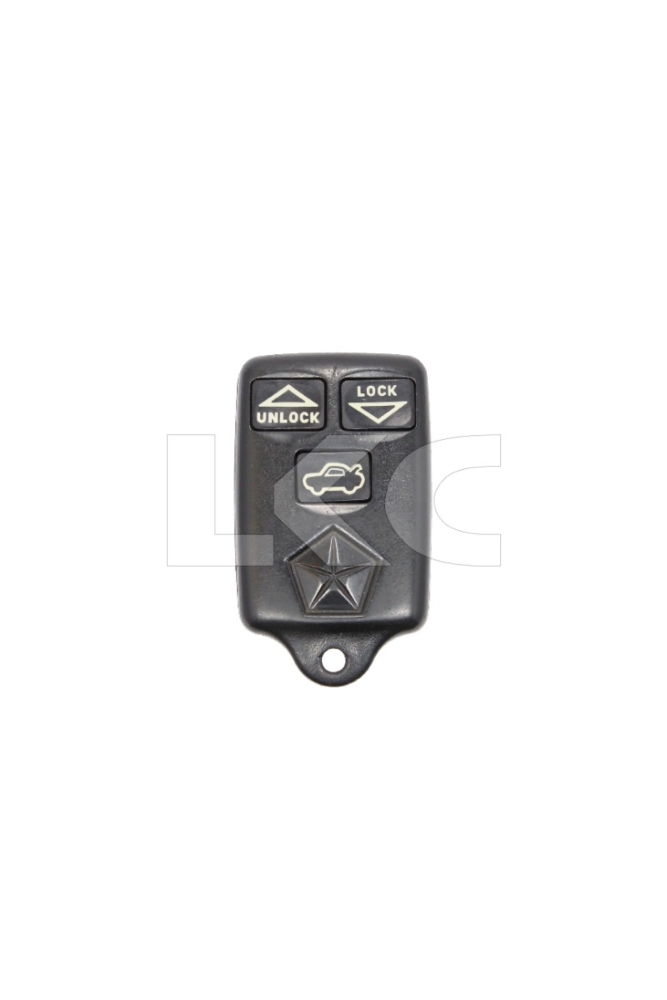

1991 - 1997 Chrysler/Dodge/Eagle 3 Button Keyless Entry Remote - GQ43VT5T

1994 - 1996 Chrysler New Yorker:
1993 - 1997 Dodge Intrepid
1994 - 1997 Eagle Vision

Obtain all remote transmitters for this vehicle.

1. Remove the middle vent bezel from the center of the dashboard. Locate the 6 pin traction control connector behind the vent. It will be black in color. Connector should be connected to the vent bezel or the traction control switch, if connected to the traction control switch you must unplug it.

2. Insert key into ignition and turn ignition switch to the ON position.

3. Using a jumper wire or a paper clip bent in the shape of a "U" jump pin 1 to pin 4. Ensure there are metal contacts or pins in cavities 1 and 4. When done properly the doors will automatically lock and then unlock to show that vehicle is in programming mode.

4. Press any button on the first remote to be programmed. Locks will cycle again to indicate vehicle recognized remote. If programming a second remote press any button on second remote to be programmed, locks will cycle again to indicate that second remote was recognized.

5. Programming is now complete, turn ignition to OFF position, remove jumper wire, and test remotes to ensure proper programming.

Alternative programming
Procedure #2
Step-by-Step How To Programming Instructions:

1. Using a working remote, PRESS the LOCK button five (5) times at two (2) second intervals to re-synchronize the remote.
2. INSERT a key into the Ignition and TURN the Ignition to the ON position (just before cranking).
3. PRESS and HOLD the UNLOCK button on a working remote for four (4) to ten (10) seconds.
4. While holding the UNLOCK button, PRESS the PANIC button for one (1) second and RELEASE both buttons at the same time. A chime will sound within three (3) seconds to indicate entry into Programming Mode.
5. PRESS the LOCK and UNLOCK buttons simultaneously on the same remote then RELEASE. The Vehicle will chime to indicate that it has recognized the remote.
6. PRESS and RELEASE the UNLOCK button on the same remote. The Vehicle will again chime to indicate successful programming of that remote. This Step MUST be done within 30 seconds of hearing the first chime in Step 3.
7. Within 30 seconds of completing Step 5, PRESS the LOCK and UNLOCK buttons on the next remote to be programmed and then RELEASE. You will again hear a chime indicating that the Vehicle has recognized the remote.
8. PRESS and RELEASE the UNLOCK button on the remote. The Vehicle will again chime to indicate successful programming of that remote.
9. REPEAT Steps 6-7 on any additional remotes to be programmed to your Vehicle.
10. Test all remotes. Programming is now complete.

1997 Chrysler New Yorker:
Obtain all remote transmitters for this vehicle. This procedure will erase all previously programmed remotes. You must program all existing and new remotes that you wish to use on the vehicle at this time.

Step-by-Step How To Programming Instructions:

1 INSERT a key into the Ignition and turn the Ignition to the ON position (just before cranking).
2. LOCATE the Data Link Connector (DLC) underneath the dash on the Driver’s side. Use the diagram above to identify Pins 1 and 4.
3. JUMP the Data Link Connector using a suitable groundwire from Pin 1 to Pin 4. DO NOT REMOVE the jumper wire until the end of the programming process.
4. PRESS ANY button on the first remote to be programmed. The Vehicle will cycle locks LOCK and UNLOCK automatically to signal successful programming of that remote.
5. REPEAT Step 4 for any additional remotes to be programmed to your Vehicle.
6. REMOVE the jumper wire, TURN the Ignition to the OFF position and REMOVE the key from the Ignition.
7. Test all remotes. Programming is now complete.
