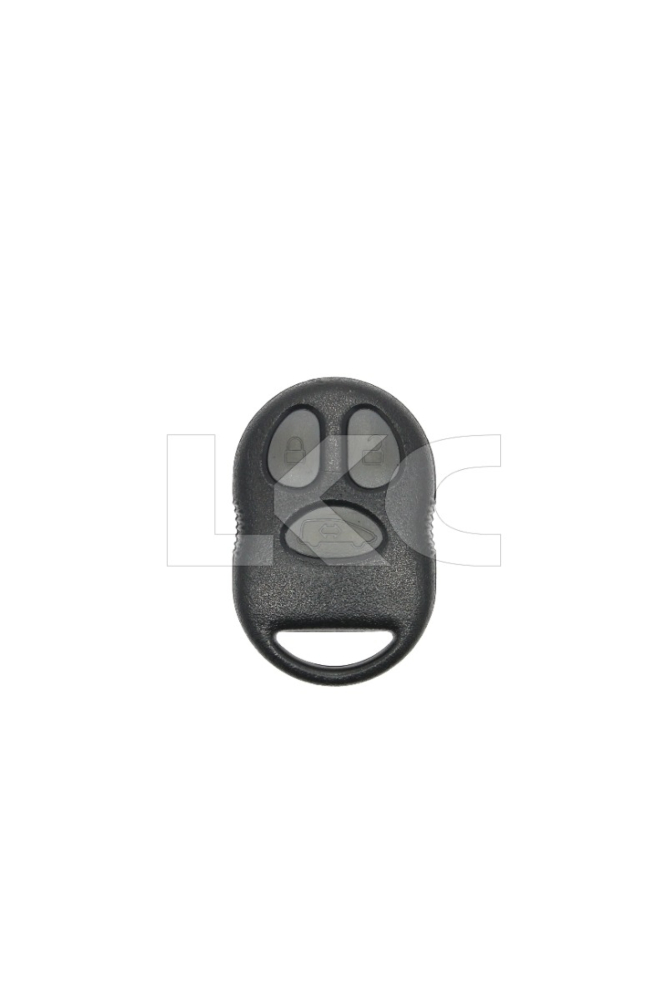

1994 - 1996 Chevrolet/Oldsmobile/Pontiac 3 Button Keyless Entry Remote - ABO0203T

1994 - 1996 Oldsmobile Silhouette
1994 - 1996 Pontiac Transport

1. Insert key into ignition and turn ignition switch to the ON position (as far as you can turn without cranking engine).

2. Lower glove box and remove the inner compartment. You must access behind the glove box. Once removed locate the receiver box behind glove box and press the "PROGRAM" button on the receiver.

3. Once pressed the vehicle will automatically cycle the door locks to lock and then unlock.

4. Vehicle is now in programming mode.Within ten seconds press the UNLOCK button once on the first remote to be programmed. Vehicle will cycle door locks again to lock then unlock to verify acceptance of the remote.

5. Repeat step 4 to program an additional remote.

6. Programming is now complete. Wait ten seconds after the last programmed remote, turn off ignition, and test remotes to ensure proper programming.

1994 - 1996 Chevrolet Lumina

Note: Existing keyless remotes will be erased with this procedure.
         Existing working remotes will have to reprogrammed also.

1. Locate the programming connector wire located in the RH trunk area.
    You may have to pull back right side trunk trim on trunk wall to locate
    the single black/white wire.

2. The programming connector wire should have one termial in the plastic
    connector on end of black/white wire. Ground the terminal in the connector
    to  a nearby bolt or trunk latch.
    Leave connector wire connected to ground through out procedure.

3. System will now lock and unlock doors automatically to indicate
    programming mode has been activated.

4. Press any button on keyless remote. System will respond by locking
    and unlocking doors one time to indicate successful programming.

5. Repeat step 4 for to program any additonal keyless remotes including
    and existing keyless remotes. Do not remove ground wire between
    programming of keyless remotes.

6. Disconnect programming connector wire from ground to exit programming
    mode.

7. Test keyless remote(s).
