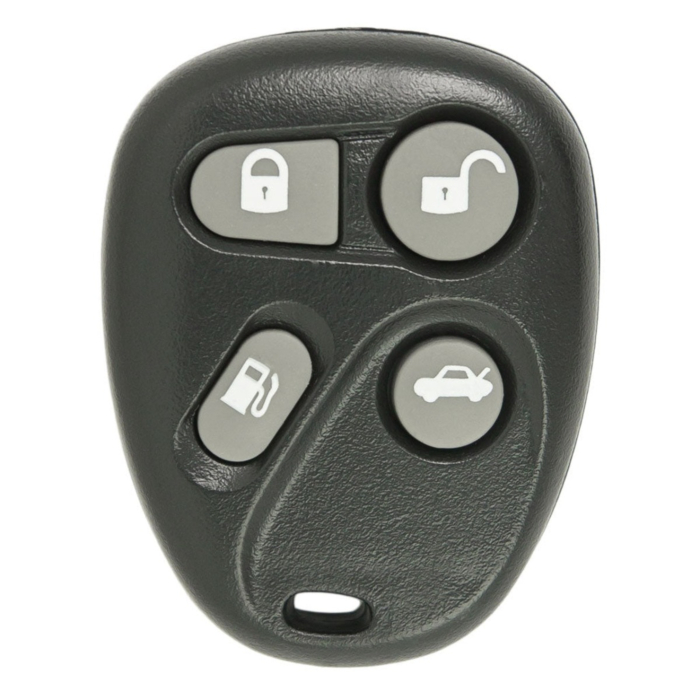

1996 - 2001 Cadillac 4 Button Keyless Entry Remote w/ Gas - AB01602T

1996 - 2001 Cadillac Catera's are Not Self-Programmable and will require an Automotive Locksmith to Program.

1996 - 1997 Cadillac Eldorado Programming Instructions:

  Use these instuctions if your ElDorado has an  Analog Instrument Cluster


1.   Press OFF and WARM buttons on  Climate Control Panel (CCP) simultaneously.
      (Instrument Panel Cluster (IPC) will light all telltales, then go blank) System is now in diagnostic mode.
       Press PASSENGER COOLER button until “RFA” is displayed, then press FAN UP.

      If   “RFA DATA” is displayed, press FAN DOWN.

      If   “RFA OVERRIDE” is displayed, press FAN UP.

2.   If  “RFA 500 NO OVERRIDE” is displayed, press FAN DOWN.

      If  “RFA 501 PROGRAM FOB #1” is displayed, Press FAN UP.

3.   IPC will show “0” on right side of Driver Information Center (DIC) display.

      Press warmer button on climate control unit until “99” is displayed.

4.   Press and hold TRUNK button on transmitter. While holding TRUNK button, press LOCK button and hold for one
      second. Hold both buttons for a total of 3 seconds. Locks cycle when programming is complete (if remote is not
      programmed within 30 seconds after entering “99” override display, system will default and you must begin again at
      step 2.

5.   To program a second remote, press FAN DOWN button until  “RFA 502 PROGRAM FOB #2” is displayed, then press
      FAN UP.  Repeat step 4.

 To exit system, press AUTO, MODE UP, MODE DOWN, or RESET.

  Use these instructions if your ElDorado has a  Digital Instrument Cluster

1.   Press OFF and WARM buttons on Climate Control Center (CCC) simultaneously. Instrument Panel Cluster (IPC) will
       light all telltales, go blank then  enter DIAGNOSTIC MODE. Press FAN DOW button to scroll through system until
       “RFA” is displayed, then press FAN UP button. Press FAN DOWN button until “RFA OVERRIDE” is displayed, then
        press FAN UP button. When  “NO OVRD RF 500” is displayed, then press FAN UP button.

2.   When “PGM FOBL 501” is displayed, press WARM button and “99” will be displayed in left upper corner of IPC just
      below odometer. System is now ready to program remote.

3.   Press and hold TRUNK button on transmitter. While holding TRUNK button, press LOCK button and hold for one
      second. Hold both buttons for a total of 3 seconds. Locks cycle when programming is complete (if remote is not
      programmed within 30 seconds after entering “99” override display, system will default and you must begin again at
      step 2.)

4.  To program second remote, pres FAN UP button until “PGM FOB2 502” is displayed, then follow steps 2 and 3 to
      program second remote.

 To exit system, press RECIRC or RESET buttons.

1996 - 1996 Cadillac Seville Programming Instructions:

 Use these instuctions if your SeVille has an  Analog Instrument Cluster


1.   Press OFF and WARM buttons on  Climate Control Panel (CCP) simultaneously.
      (Instrument Panel Cluster (IPC) will light all telltales, then go blank) System is now in diagnostic mode.
       Press PASSENGER COOLER button until “RFA” is displayed, then press FAN UP.

      If   “RFA DATA” is displayed, press FAN DOWN.

      If   “RFA OVERRIDE” is displayed, press FAN UP.

2.   If  “RFA 500 NO OVERRIDE” is displayed, press FAN DOWN.

      If  “RFA 501 PROGRAM FOB #1” is displayed, Press FAN UP.

3.   IPC will show “0” on right side of Driver Information Center (DIC) display.

      Press warmer button on climate control unit until “99” is displayed.

4.   Press and hold TRUNK button on transmitter. While holding TRUNK button, press LOCK button and hold for one
      second. Hold both buttons for a total of 3 seconds. Locks cycle when programming is complete (if remote is not
      programmed within 30 seconds after entering “99” override display, system will default and you must begin again at
      step 2.

5.   To program a second remote, press FAN DOWN button until  “RFA 502 PROGRAM FOB #2” is displayed, then press
      FAN UP.  Repeat step 4.

      To exit system, press AUTO, MODE UP, MODE DOWN, or RESET.

   Use these instructions if your SeVille has a  Digital Instrument Cluster

1.   Press OFF and WARM buttons on Climate Control Center (CCC) simultaneously. Instrument Panel Cluster (IPC) will
       light all telltales, go blank then  enter DIAGNOSTIC MODE. Press FAN DOW button to scroll through system until
       “RFA” is displayed, then press FAN UP button. Press FAN DOWN button until “RFA OVERRIDE” is displayed, then
        press FAN UP button. When  “NO OVRD RF 500” is displayed, then press FAN UP button.

2.   When “PGM FOBL 501” is displayed, press WARM button and “99” will be displayed in left upper corner of IPC just
      below odometer. System is now ready to program remote.

3.   Press and hold TRUNK button on transmitter. While holding TRUNK button, press LOCK button and hold for one
      second. Hold both buttons for a total of 3 seconds. Locks cycle when programming is complete (if remote is not
      programmed within 30 seconds after entering “99” override display, system will default and you must begin again at
      step 2.)

4.  To program second remote, pres FAN UP button until “PGM FOB2 502” is displayed, then follow steps 2 and 3 to
      program second remote.

     To exit system, press RECIRC or RESET buttons.
