1996 - 2005 NEW GM 4 Button Keyless Entry Remote Fob - KOBUT1BT

Your Price $32.09
Availability: In stock
SKU
926-A
  • Buy 2 for $28.88 each and save 10%
  • Buy 3 for $27.28 each and save 15%
Details
More Information

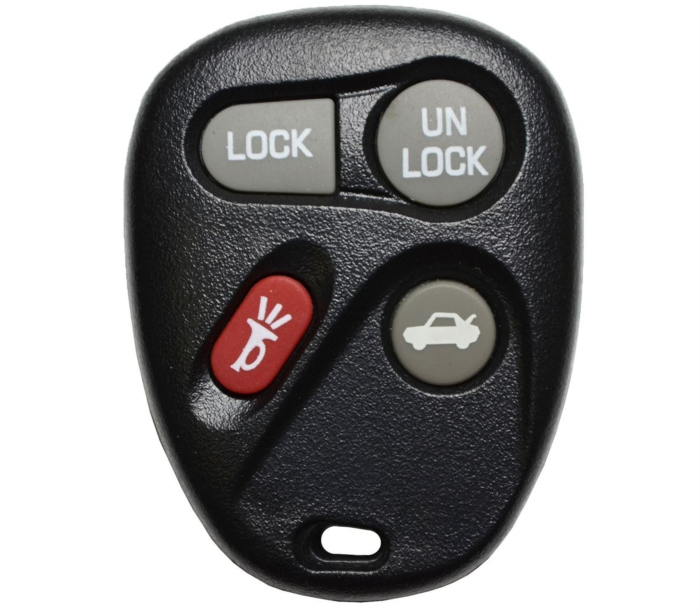

1996 - 2005 NEW GM 4 Button Keyless Entry Remote Fob - KOBUT1BT

*Interchangeable D Board*

Fits:

2000 Buick LeSabre
1996 - 2005 Buick Park Avenue
1997 - 1998 Buick Riviera
1998 - 2001 Chevrolet Blazer
2000 Chevrolet Impala
2000 Chevrolet Malibu
2000 Chevrolet Monte Carlo
1998 - 2001 GMC Jimmy
1996 - 1999 Oldsmobile 88
1999 - 2000 Oldsmobile Alero
1996 - 1999 Oldsmobile Aurora
2001 - 2002 Oldsmobile Aurora
1998 - 2001 Oldsmobile Bravada
2000 Oldsmobile Cutlass
1996 - 1999 Oldsmobile LSS
1996 - 1998 Oldsmobile Regency
1996 - 2000 Pontiac Bonneville
1999 - 2000 Pontiac Grand Am

180 Day Satisfaction Guarantee!

If you are not 100% satisfied with your product for any reason, you may return the product within 180 days of ordering for a replacement. Please see our return policy for further information.



More Information
SKU926-A
FCC NumberKOBUT1BT
OE Part #25678792, 25665575, 15732805, 25665574, 25668603
SupportYour purchase gives you 100% free e-mail and phone technical support from our expert staff.
Programming InformationSOME models come with self programming instructions. You can view them under the 'Programming Instructions' tab. All other models will need an automotive locksmith to come out and program the unit in for you. NOTE: When looking under the 'Programming Instructions' tab please look for your specific model as the programming instructions vary.
Product ConditionNew Aftermarket
Programming Instructions

Programming Instructions for: 1996 - 1999 Buick Park Avenue, 1997 - 1998 Buick Riviera, 1996 - 1999 Oldsmobile 88, 1996 - 1999 Oldsmobile Aurora, 1996 - 1999 Oldsmobile LSS, 1997 - 1998 Oldsmobile Regency, 1996 - 1999 Pontiac Bonneville

1.   Insert key in ignition and leave in the OFF position

2.    Locate the Data Link Port. It is located under dash drivers side. Be sure you know
      which pins are 8 and 4.

        (Note port is wider at top)


3.      Make sure there are metal contact pins in terminals 8 and 4. Connect 8 to 4 with a
        suitable jumper wire (leave the jumper wire connected throughout the programming
        procedure). Make sure you know which terminals are 8 and 4. The vehicle will respond
        by locking and unlocking the doors to signify entering of programming mode.


4.    Close doors.

5.   Turn ignition to the ON position (as far as you can go without cranking the engine).
      Doors will lock.

6.      Press and hold both the LOCK and UNLOCK buttons together on the first transmitter to
       be programmed. After about 15 seconds, the vehicle will respond by locking and
       unlocking the doors. Release the buttons on the transmitter.

7.      Within one minute, repeat the previous step on the remaining transmitters to be
       programmed.

8.    Remove jumper wire applied to th OBDII Port.


Programming Instructions for: 1998 - 2001 Chevrolet Blazer, 1998 - 2001 Oldsmobile Bravada, 2000 Pontiac Grand Am

1. Close all doors

2. Insert key into ignition

3. Hold down the power UNLOCK button on the driver's door panel, continue to hold down
    until instructed to release in step 9.

4. Perform steps 5 through 8 in a fairly rapid succession.

5. Turn the ignition to the ON position (as far as you can go without starting the engine.)

6. Turn the ignition to the OFF position.

7. Turn the ignition to the ON position (as far as you can go without starting the engine.)

8. Turn the ignition to the OFF position.

9. Release the power UNLOCK button on the door panel. The vehicle should respond by
    door locks locking and unlocking automatically. (If locks do not cycle after you let go,
    not before you let go of the unlock button, then the vehicle has not entered programming
    mode and you must start procedure over. Remove key from ignition, open drivers door
    and return to step 1 ). If the locks do cycle automatically then proceed to step 10.

10. Hold down the LOCK and UNLOCK buttons on the remote until the doors lock and
      unlock. This may take up to 30 seconds.

11. Repeat step 10 NOW for each additional remote. (Including any existing remotes).

12. Turn the ignition to the ON position to exit the programming mode.

13. Test remote(s).


Programming Instructions for: 2000 Chevrolet Impala, 2000 Chevrolet Monte Carlo



1.       Turn the ignition to ACC or ON and the radio to off. Do not crank the engine.

2.       Press and hold the DISP button on the radio for at least five seconds until settings is displayed.

3.       Press the SEEK up or down arrows until FOB PROG appears on the display.

4.       Press the PREV or NEXT button to enter the submenu. The current selection will have an
        asterisk next to it. BEGIN will be displayed.

5.       Press the DISP button to start programming. When the message PUSH FOB flashes, press and
        hold the LOCK and UNLOCK buttons on the first transmitter at the same time for 15 seconds. A
        chime will be heard to verify the transmitter is learned.

6.    Repeat Step 5 for each additional transmitter up to four remotes total. You do not need to press
        the DISP button again, just press down the LOCK and UNLOCK buttons on the next transmitter
        to be learned to a maximum of four transmitters per vehicle.

The mode you selected is now set. You can either exit the programming mode by following the instructions later in this section or program the next feature available on your vehicle.

EXIT (Exit Feature Customization Mode): This feature allows you to exit the vehicle customization programming.
To Exit:
1. Scroll until EXIT appears on the display.
2. Press the DISP button to exit programming. A chime will he heard to verify the exit.

Programming Instructions for A 2000 Chevrolet Malibu

1.    Close the vehicle doors.

2.   Turn ignition to the ON position then OFF.

3.   Remove key from the ignition.

4.   Press and hold the driver side door lock switch in the UNLOCK position
      until step 8.

5.   Insert the ignition key into the ignition lock cylinder and remove the key.
      (Do not turn the ignition key in the lock cylinder)

6.   Insert the ignition key into the ignition lock cylinder and remove the key.
      (Do not turn the ignition key in the lock cylinder)

7.   Insert the ignition key into the ignition lock cylinder.
      (Do not turn the ignition key in the lock cylinder)
      Leave key in the ignition cylinder.

8.   Release the door lock switch. The vehicle will sound three beeps in order
      to verify the Program Mode has been activated.

9.   Press the LOCK and UNLOCK buttons together on the keyless remote and
      hold unitl the vehicle beeps twice to verify that the keyless remote has been
      successfully programmed. This may take approximately 15 seconds.

10.  Perform the previous step (9) to program up to four keyless remotesm, including
       any old ones.

11.  Remove the ignition key to exit Program Mode.

Programming Instructions for A 2000 Oldsmobile Cutlass

IMPORTANT:  Before entering programming mode, have in possession all of the transmitters you will be using on the vehicle. Once you program the transmitter, all previous codes will be erased from the memory. The other transmitters will not be functional until you program the transmitters again.

1.      Close all vehicle doors.

2.      Remove the key from the ignition. NOTE: In order to successfully enter the keyless entry programming/diagnostic mode, you must complete steps 4-9 within 25 seconds of pressing the door unlock switch.

3.      Press and hold the door unlock switch.

4.      Hold down the power UNLOCK button on the driver’s door panel – continue to hold down until instructed to release.

5.      Insert keys into ignition.

6.      Perform steps 7 through 10 in fairly rapid succession.

7.      Turn the ignition switch to the ON position (as far as you can go without starting the engine).

8.      Turn the ignition switch to the OFF position.

9.      Turn the ignition switch to the ON position.

10.  Turn the ignition switch to the OFF position.

11.  Release the power unlock button on the door panel. The vehicle will chime three times to indicate that the vehicle is in programming mode.   IMPORTANT: ALL transmitters must be programmed at this time.  When a new transmitter is programmed, it will deactivate the old transmitters.

12.  Hold down the LOCK and UNLOCK buttons on the transmitter for approximately 4 seconds or until the vehicle chimes two times to indicate successful programming.

13.  Repeat the previous step for each additional transmitter (including any existing transmitters).

14.  Turn the ignition switch to the ON position in order to exit the transmitter programming mode.
