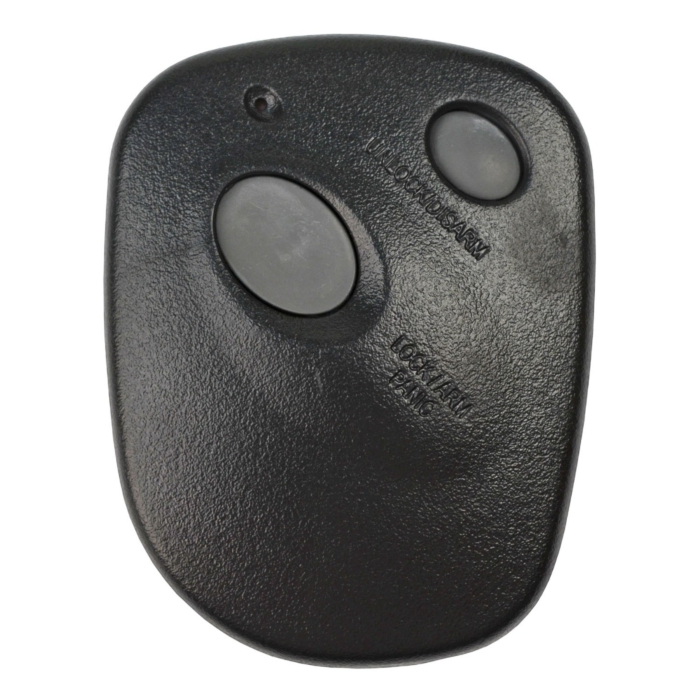

1999 - 2004 OEM Subaru 2 Button Keyless Entry Remote Fob - A269ZUA111

2001 - 2003 Subaru Forester

2001 - 2004 Subaru Impreza

2000 - 2003 Subaru Legacy

2000 - 2004 Subaru Outback

Obtain all remote transmitters for this vehicle.

1. Sit in the vehicle in the drivers seat with all doors, trunk, and rear gate closed.

2. Open and close the drivers door.

3. Put key into ignition switch. Cycle ignition switch from OFF to ON (ON is the position just before the engine cranks) ten times as quick as can be done ending up in the lock position. This must be done within 15 seconds. When done properly you will hear the horn sound. Now the vehicle is in programming mode.

4. Open and close the drivers door.

5. Press any button on the first remote. The horn will sound two times to indicate that remote was accepted.

6. Repeat steps 4 and 5 for each additional remote that you wish to program to vehicle.

7. Remove the key from the ignition switch. Horn will sound three times to indicate that vehicle is out of programming mode. Test all programmed remotes for proper function.

1999 - 2000 Subaru Impreza

1999 Subaru Outback

1. Open the driver's door.

2. Turn the ignition key ON (ON is the position just shy of cranking the engine).

3. Press and hold the programming/override button (located under or at the bottom of the driver's side dash). In approximately 20 seconds the system will start to cycle the door locks and the siren (if equipped) 3 times to indicate the system has entered the transmitter learn mode (DO NOT RELEASE THE PROGRAMMING/OVERRIDE BUTTON).

4. Press the #1 button (top left button) on the unprogrammed transmitter. The system will respond by cycling the door locks and the siren (if equipped) one time to indicate the transmitter has been learned.

5. All other transmitters (up to four) also need to be programmed at this time.

6. Programming is now complete, let go of the programming/override button and turn ignition off to exit learn mode. Test all remotes for proper programming.
