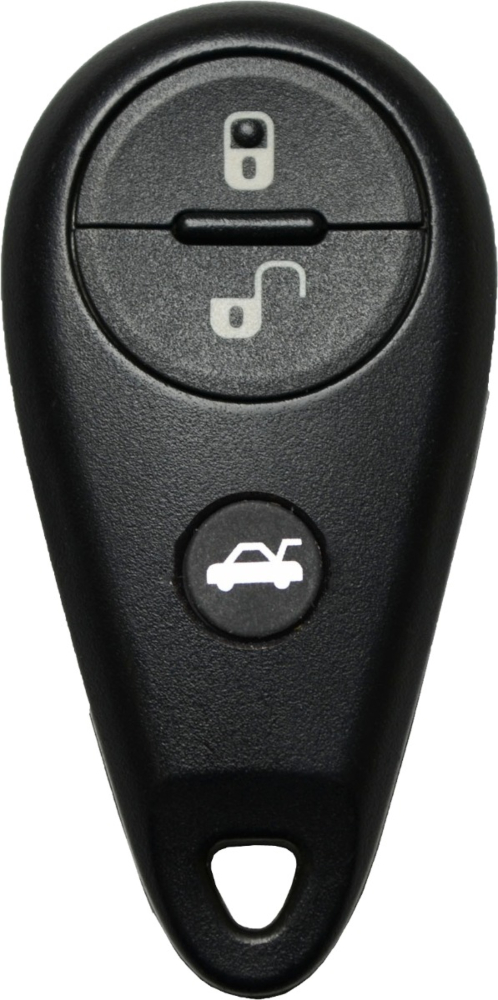

1999 - 2011 Subaru 4 Button Keyless Entry Remote Fob - NHVWB1U711

1999 - 2000 Subaru Impreza

Obtain all remote transmitters for this vehicle.

1. Open the driver's door.

2. Turn the ignition key ON (ON is the position just shy of cranking the engine).

3. Press and hold the programming/override button (located under or at the bottom of the driver's side dash). In approximately 20 seconds the system will start to cycle the door locks and the siren (if equipped) 3 times to indicate the system has entered the transmitter learn mode (DO NOT RELEASE THE PROGRAMMING/OVERRIDE BUTTON).

4. Press the #1 button (top left button) on the unprogrammed transmitter. The system will respond by cycling the door locks and the siren (if equipped) one time to indicate the transmitter has been learned.

5. All other transmitters (up to four) also need to be programmed at this time.

6. Programming is now complete, let go of the programming/override button and turn ignition off to exit learn mode. Test all remotes for proper programming.

2001 - 2003 Subaru Impreza

Obtain all remote transmitters for this vehicle.

1. Sit in the vehicle in the drivers seat with all doors, trunk, and rear gate closed.

2. Open and close the drivers door.

3. Put key into ignition switch. Cycle ignition switch from OFF to ON (ON is the position just before the engine cranks) ten times as quick as can be done ending up in the lock position. This must be done within 15 seconds. When done properly you will hear the horn sound. Now the vehicle is in programming mode.

4. Open and close the drivers door.

5. Press any button on the first remote. The horn will sound two times to indicate that remote was accepted.

6. Repeat steps 4 and 5 for each additional remote that you wish to program to vehicle.

7. Remove the key from the ignition switch. Horn will sound three times to indicate that vehicle is out of programming mode. Test all programmed remotes for proper function.

2004 Subaru Impreza

Obtain all remote transmitters for this vehicle.

1. Sit in the vehicle in the drivers seat with all doors, trunk, and rear gate closed.

2. Open and close the drivers door.

3. Put key into ignition switch. Cycle ignition switch from OFF to ON (ON is the position just before the engine cranks) ten times as quick as can be done ending up in the lock position. This must be done within 15 seconds. When done properly you will hear the horn sound. Now the vehicle is in programming mode.

4. Open and close the drivers door.

5. Press any button on the first remote. The horn will sound two times to indicate that remote was accepted.

6. Repeat steps 4 and 5 for each additional remote that you wish to program to vehicle.

7. Remove the key from the ignition switch. Horn will sound three times to indicate that vehicle is out of programming mode. Test all programmed remotes for proper function

2005 - 2007 Subaru Legacy

2005 - 2007 Subaru Outback

2006 - 2007 Subaru B9 Tribeca

Obtain all remote transmitters for this vehicle.

For remote programming on this vehicle it is necessary to obtain the identification number on the circuit board

in the remote. Take a small screwdriver and split the case halves of the remote. Once open you will look on

the circuit board and see a sticker with 8 digits on it. If there are two rows of digits you need the one with all

numbers and no letters. Now you are ready for programming.

1. Sit in the vehicle and close the door. Ensure that all doors and rear gate or trunk lid are closed.

2. Open then close the driver's door.

3. Open then close the driver's door within 45 seconds.

4. Cycle the ignition switch from LOCK to ON 10 times within 15 seconds. Once done properly you will hear an

    audible tone accompanied with a buzzing noise. At the same time the interior light will begin to flash. The

    flashing light and the buzzing sound will continue through the programming process. If you do not get this

    response then you must return to step 3 and start over.

5. Open and close the door within 15 seconds and the audible tone will be heard again. If you do not get the

    audible tone at this time you must return to step 3 and start over.

6. While you still hear the tone, press the LOCK button on the door panel the same amount of times as the first

    digit on the identification number, if the first number is 2 you will press the LOCK button twice, if the number is 8

    you will press the LOCK button eight times. Once the first sequence is entered for the first number you will press the

    UNLOCK button once within five seconds. Repeat these steps for the seven remaining digits of the identification

    number. Press the UNLOCK button within five seconds after each number entry.

7. Once finished entering all numbers in the identification number you must press the UNLOCK button one more time

    within 5 seconds and then go through step 6 one more time. You must complete all steps in step 6 one additional

    time. At completion of the eighth digit you will hear an audible tone for approximately 30 seconds.

8. Repeat steps 4-7 for each additional remote you are programming to the vehicle.

9. Upon completion you can remove key from ignition and test all remotes to ensure that the programming was

    successful.
