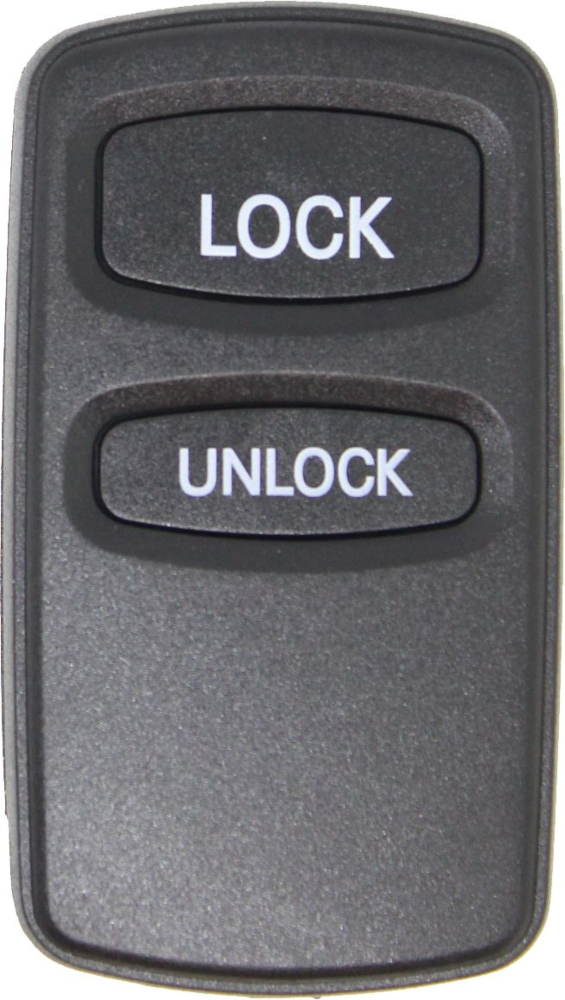

2000 - 2003 Mitsubishi Montero Sport 2 Button Keyless Entry Remote Fob - E4EG8D-522M-A
2000 - 2003 Mitsubishi Montero Sport
If you are not 100% satisfied with your product for any reason, you may return the product within 180 days of ordering for a replacement. Please see our return policy for further information.
|OE Part #||MR587978|
|Support||Your purchase gives you 100% free e-mail and phone technical support from our expert staff.|
Please contact us via phone (1-855-224-7258 EXT-3) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!
If our techs inform you that this product needs to be programmed by a Locksmith, you may do Google search here for 'automotive locksmith' followed by your zip code. We suggest calling Locksmiths to find the best rate for the programming and/or cutting service.
1. Locate the Data Port.
2. Insert keys in ignition and leave in the OFF position.
3. Make sure there are metal contact pins in terminals 1 and 4 and connect the Data Port with a suitable jumper wire, leave jumper wire connected through out the programming procedure. Make sure you know which terminals are 1 and 4.
4. Within 10 seconds after connecting the jumper wire, turn the ignition switch to the ACC position and then back to OFF (do this as quick as you can). Repeat this procedure two more times (very quickly-you should be able to get the 3 ACC to OFF cycles in less than 2 seconds). Note: The doors will automatically lock and unlock once at this time indicating that the system is in the programming mode.
5. Press the LOCK button on the remote to be registered three times within 10 seconds. Upon successful programming, the doors will lock and unlock once.
6. If there are two remotes, register the first, then register the second by repeating step 5 within one minute. After completing the second programming, the doors will lock and unlock once.
7. Disconnect the programming wire and remove the keys from the ignition.
