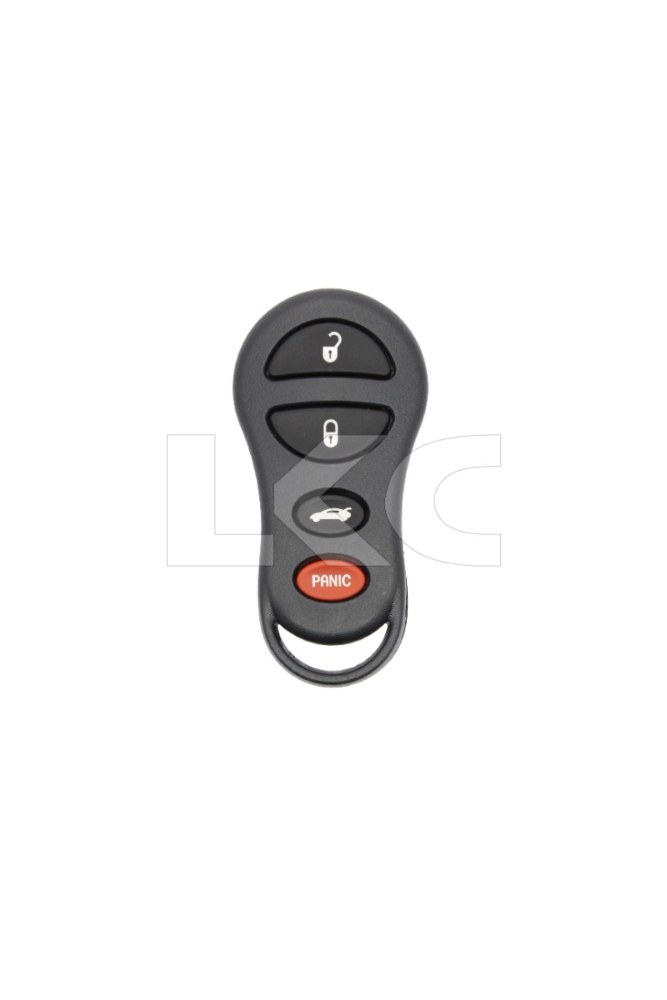

2001 - 2006 Chrysler/Dodge/Jeep 4 Button Keyless Entry Remote Fob - GQ43VT17T

2001 - 2004 Chrysler 300 M
2001 - 2004 Chrysler Concorde
2001 - 2006 Dodge Stratus:

ATTENTION: You MUST HAVE one working remote to add one more to the system.
If you do not have one working remote right now then these instructions will not work.
You will have to have a Locksmith  use a computer to program the first
remote for you.

1.  Using the working remote,
     Press LOCK button 5 times at 2 second intervals to resynchronize remote.

2.  Insert key into the ignition switch. Turn ignition to the RUN position (as far as you
     can go without cranking engine). Wait for ignition chimes to stop.

3. Using the working remote, press and hold the UNLOCK button on the remote for 4 to
    10 seconds.

4. Still using the working remote, within the specified 4 to 10 seconds, continue
    pressing the UNLOCK button and then press the PANIC button ( on the working
    programmed remote ) for 1 second and release both buttons. A chime will sound
    to indicate that the remote programming mode has been entered ( allow 3 seconds
    for chime to sound ).

5. Still using the working remote, within 30 seconds of the chime, press and release the
    LOCK and UNLOCK buttons simultaneously then press and release just the UNLOCK
    button. A chime will sound indicating the remote has been programmed.

6. Using a new / replacement remote, press and release the LOCK and UNLOCK buttons
    simultaneously and then press and release just the UNLOCK button. A chime will
    sound. This remote has now been programmed.

7. For each additional new /  replacement remote, press and release the LOCK and
    UNLOCK buttons simultaneously and then press and release the UNLOCK button. A
    chime should be heard after each remote signaling it has been programmed.

8. Turn ignition OFF and remove key.

9. Test Remotes.


2001 - 2002 Chrysler LHS
2001 - 2006 Chrysler Sebring
2001 - 2004 Dodge Intrepid
2002 - 2004 Jeep Liberty:

YOU MUST HAVE A WORKING REMOTE FOR THIS PROCEDURE TO WORK. IF YOU DON'T HAVE A WORKING REMOTE THEN YOU MUST HAVE A REMOTE PROGRAMMED BY A LOCKSMITH USING DIAGNOSTIC EQUIPMENT.

PLEASE READ ENTIRE PROCEDURE BEFORE PERFORMING. SOME VEHICLES MAY USE ONE OF TWO PROCEDURES. IF PROCEDURE 1. DOES NOT WORK THEN PLEASE USE PROCEDURE 2.



Programming procedure #1.

Obtain all remote transmitters for this vehicle.


1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).


2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.


3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.


4. Press any button on the remote used in step 3. You should hear an audible tone indicating that remote has been re-programmed. This step must be done within 30 seconds of hearing first chime in step 3.


5. Within 30 seconds of completiong step 4. press any button on the next remote. Repeat step 5. for all additional remotes including working remotes.


6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.



Programming Procedure #2

Obtain all remote transmitters for this vehicle.


1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).


2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.


3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.


4. Press the LOCK and UNLOCK buttons simultaneously on the same remote used in step 3. then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. This must be done within 30 seconds of step 3.


5. Within 30 seconds of completing step 4. press the LOCK and UNLOCK button on the next remote then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. Repeat step 5. for all additional remotes including working remotes.


6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.
