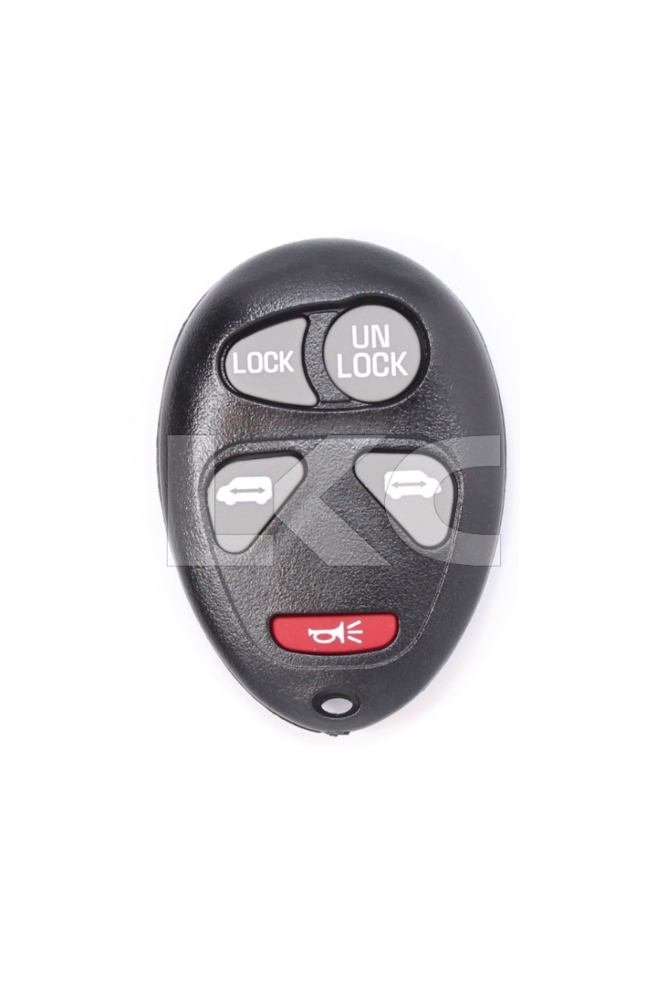

2002 - 2005 GM 5 Button Keyless Entry Remote Fob w/ Dual Sliding Doors - L2C0007T

2001 - 2005 Chevrolet Venture

2001 - 2005 Pontiac Montana

IMPORTANT: Before entering programming mode, have in possession all of the remotes you
will be useing on the vehicle. Once you program the remote. all previous remotes that were
programmed will be erased from memory. The other remotes will not be functional until you
program the them again.

1. Remove the key from the ignition.

2. Remove the "BCM PRGRM" fuse from the fuse panel. Use the legend on the fuse panel to
    properly locate the "BCM PRGRM" fuse. Fuse panel is accessed by opening the front
    passenger door.

3. Close all of the doors.

4. Close the liftgate.

5. Insert the key into the ignition, and turn to the ACC position.

6. Turn the key to OFF and then back to ACC within 1 second.

7. Open and close any vehicle door. A chime will be heard when the system enters into
    programming mode.

8. Press and hold the remote LOCK and UNLOCK buttons simultaneously for 14 seconds.
              IMPORTANT: After 7 seconds, a chime may be heard confirming successful
    synchronization. It is necessary to wait approximately 14 seconds for a second chime
    that will confirm successful programming.

9. Repeat step 8 now for each additional remotes to be programmed including any existing
    remotes.

10. Remove key from ignition.

11. Install the "BCM PRGRM" fuse back into the fuse panel and test remote(s).

2001 - 2004 Oldsmobile Silhouette

1.      Remove key from ignition.

2.      Remove the “BCM PRGRM” fuse from the fuse panel, accessed by opening the front passenger door. Use the legend on the fuse panel to properly locate the “BCMPRGRM” fuse.

3.      Close all of the doors.

4.      Close the liftgate.

5.      Insert keys into the ignition, and turn the ignition lock cylinder to ACC (one click towards you – the opposite direction from starting the engine).

6.      Turn the ignition lock cylinder to OFF, and then back to ACC within 1 second.

7.      Open and close any vehicle door. A chime will be heard when the system enters the programming mode.

8.      Press and hold the transmitter LOCK and UNLOCK buttons simultaneously for 14 seconds. IMPORTANT:  After 7 seconds, a chime may be heard confirming successful synchronization. It is necessary to wait approximately 14 seconds for a second chime that will confirm successful programming. Your new remote has been accepted and all existing remote codes have been erased.

9.      Repeat the previous step on each additional transmitter to be programmed (including any existing transmitters).

10.  Remove the ignition key from the ignition lock cylinder.

11.  Install the “BCM PRGRM” fuse back into the fuse panel.
