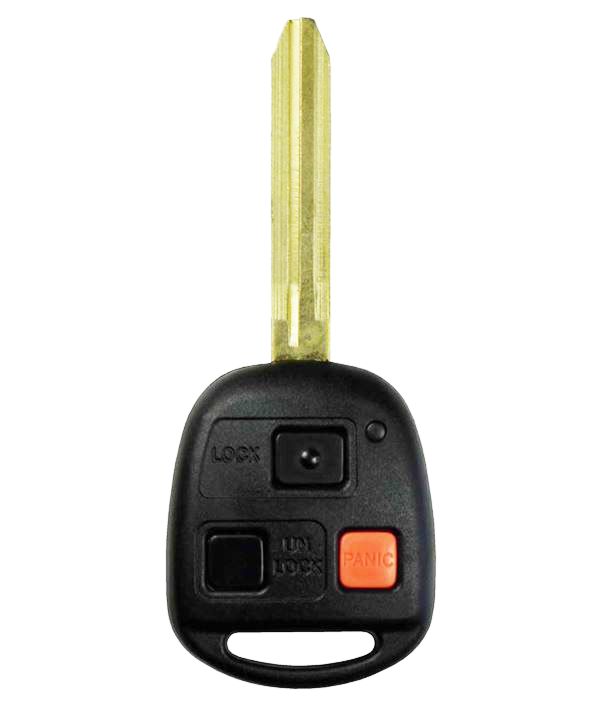

2003 - 2009 Toyota 3 Button Remote Head Key - HYQ1512V - 4D67 Chip

Please contact us via phone (1-855-224-7258) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!

If our techs inform you that this product needs to be programmed by a Locksmith, you may do Google search here for 'automotive locksmith' followed by your zip code. We suggest calling Locksmiths to find the best rate for the programming and/or cutting service.

Note: If you have a remote in the head of your key this procedure will only program the remote portion. You will still have to have a Locksmith cut and program the key portion of the remote key combo.

1. Start with the key out of the ignition, drivers door is open all others closed and drivers door is unlocked.

2. Perform these steps within 5 seconds.
    A. Insert the key into the ignition(Do NOT Turn) Pull key out.
    B. Insert the key into the ignition(Do NOT Turn) Pull key out.

3. Perform these steps within 40 seconds.
    A. Close then open the drivers door.
    B. Close then open the drivers door.
    C. Insert the key into the ignition(Do NOT Turn) Pull key out.

4. Perform these steps within 40 seconds.
    A. Close then open the drivers door.
    B. Close then open the drivers door.
    C. Insert the key into ignition and leave it in ignition.
    D. Close the drivers door.
    E. Turn the ignition to ON (Do NOT Start) then back to OFF.
    F. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should lock then unlock automatically indicating successful entry into programming mode. Return to step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds.
    A. Press the lock and unlock buttons on the remote simultaneously for 1.5 seconds.
    B. Immediately after letting go of the lock and unlock buttons, Press the lock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should lock and then unlock once indicating successful programming. If the door locks cycle twice, repeat steps A and B in step 6 as the remote was not accepted.
    C. Repeat steps A and B in step 6 for each new remote.

7. Open drivers door.
