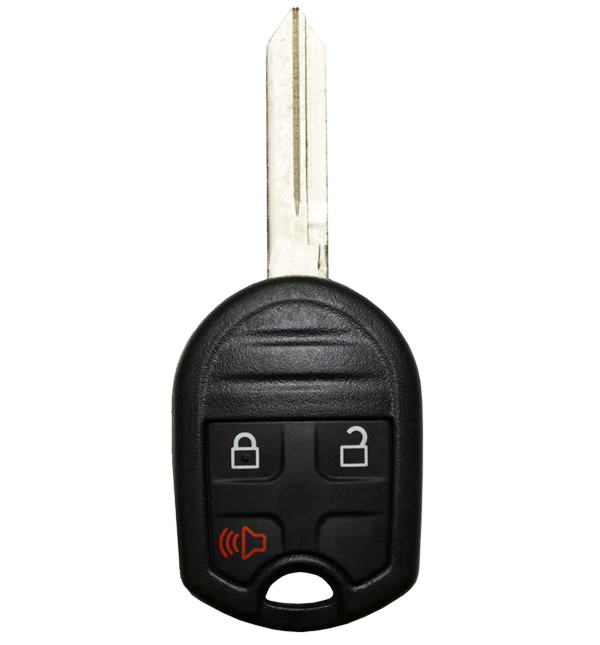

2006 - 2019 Ford/Lincoln 3 Button Remote Head Key - CWTWB1U793

Please contact us via phone (1-855-224-7258 EXT-3) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!

If our techs inform you that this product needs to be programmed by a Locksmith

Remote Head Key Programming.

You Must have Two Working Transponder Keys (keys that start your car) to perform this procedure. If you only have one working key or none at all it must be programmed by a dealer or locksmith! Your New third (unprogrammed) key must also be cut prior to performing this procedure. If you have a key from a Hardware Store this is a clone key and will not work.

1. Insert an existing (working) key into the ignition cylinder.

2. Turn the ignition cylinder ON (Position 3) and back to OFF (Position 1). Ignition should stay in ON position for at least three seconds but no more than ten seconds.

3. Remove the existing key and WITHIN TEN SECONDS, insert a second working key and turn to ON and then back to OFF. Ignition should stay in ON position for at least three seconds but no more than ten seconds.

4. Remove the second key, insert the New (unprogrammed) key before twenty seconds have elapsed and turn to ON. Leave it in the ON position for at least six seconds and turn back to OFF.

5. If the new key has been successfully programmed it will start the vehicle and operate the remote keyless entry system. The theft indicator light will light up for three seconds to indicate the key was successfully programmed.

*If the new key was not successfully programmed, repeat steps 1-4. If the remote portion of the remote did not program but the key will start the vehicle, then please perform the procedure below to program the remote portion of your remote head key.

Three or Four Button Remote Programming Instructions.

Obtain all remote transmitters for this vehicle. It's not necessary to re-program your working remote head keys as those will continue to work. If you are programming additional non-remote head key remotes for your vehicle then they must all be programmed during this procedure. You are able to program up to Four remotes in addition to your remote head keys.

Do not depress the brake pedal during procedure.

Turn ignition from OFF to RUN 8 times within 10 seconds, with the 8th time ending in RUN. Door locks will cycle to confirm programming mode. (Off is the position where you can remove your key, RUN is the postion just shy of starting your car.)
Within 20 seconds press any button on the first keyless remote to be programmed. Door locks will cycle to confirm programming. If you only have one remote then skip to step 4.
Within 20 seconds, press any button on the second keyless remote. Door locks will cycle again to confirm programming. Repeat step 3. for all other remotes.
Turn ignition to OFF. Locks will again cycle to indicate end of programming mode.
