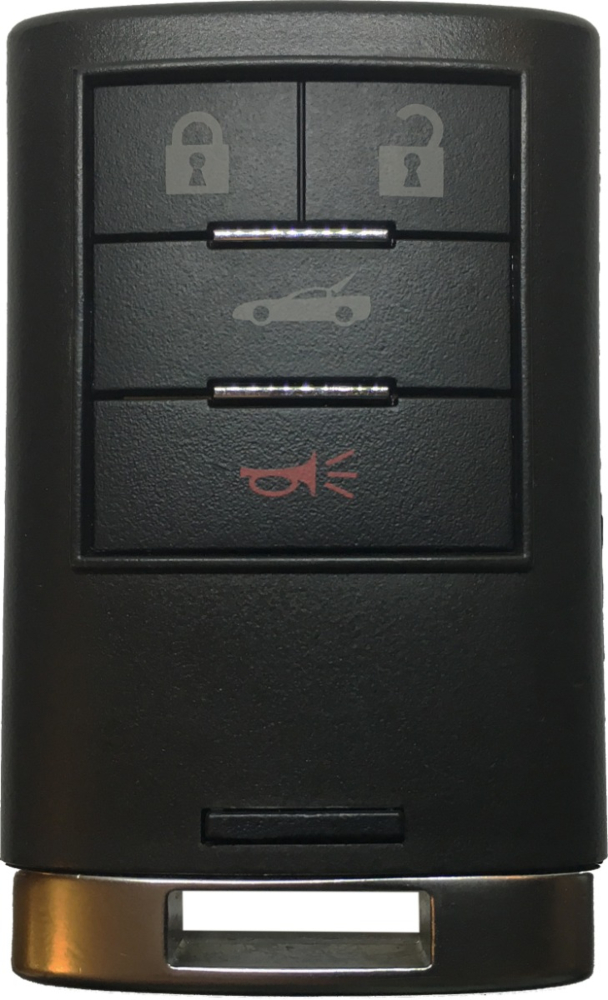

2008 - 2013 Chevrolet Corvette 4 Button Proximity Smart Key Remote - Standard blade included - M3N5WY7777A

Programming Transmitters to the Vehicle

Only keyless access transmitters programmed to this vehicle will work. The vehicle can be reprogrammed so that lost or stolen transmitters no longer work. Each vehicle can have up to four transmitters programmed to it.

Programming with a Recognized Transmitter

A new transmitter can be programmed to the vehicle when there is one recognized transmitter. For vehicles sold in Canada, two recognized transmitters are required to program a new transmitter.

1. The vehicle must be off.

2. Both the recognized and new transmitters must be with you.

3. Insert the vehicle key into the key cylinder located above the license plate.

4. Open the hatch/trunk.

5. Turn the key five times within five seconds.

6 The DIC displays READY FOR FOB #2, 3, or 4.

7. Place the new transmitter in the glove box transmitter pocket with the buttons facing the passenger side.

8. A beep sounds once programming is complete. The DIC displays READY FOR #3 or 4, or MAXIMUM NUMBER OF FOBS LEARNED.

9. To program additional transmitters, repeat Step 7. Press Acc. on the ignition switch if programming is complete.

10. Press Unlock on each newly programmed transmitter to complete the process.

Programming without a Recognized Transmitter

This procedure requires three ten minute cycles to complete the programming process. United States owners are permitted to program a new transmitter to their vehicle when a recognized transmitter is not available. The Canadian immobilizer standard requires that Canadian owners see their dealer/retailer for programming new transmitters when two recognized transmitters are not available.

1. The vehicle must be off.

2. Place the new transmitter in the glove box transmitter pocket with the buttons facing the passenger side.

3. Insert the vehicle key into the key cylinder located above the license plate.

4. Open the hatch/trunk.

5. Turn the key five times within five seconds.

6. The DIC message displays OFF-ACCESSORY TO LEARN.

7. Press Acc. on the ignition switch.

8. The DIC reads WAIT 10 MINUTES and counts down to zero.

9. The DIC displays OFF-ACCESSORY TO LEARN again.

10. Press Acc. on the ignition switch.

11. Steps 8, 9, and 10 will be repeated two more times.

12. A beep sounds and the DIC reads READY FOR FOB #1. All previously known transmitter programming has been erased.

13. A beep sounds once programming is complete. The DIC displays READY FOR FOB #2.

To program additional transmitters, take transmitter 1 out of the transmitter pocket and place transmitter 2 in the pocket. Up to four transmitters can be programmed. The DIC then displays MAXIMUM NUMBER OF FOBS LEARNED and exits the programming mode.

Press Acc. on the ignition switch to complete the process.

14. Press Acc. on the ignition switch if programming is complete.

15. Press Unlock on each newly programmed transmitter to complete the process
