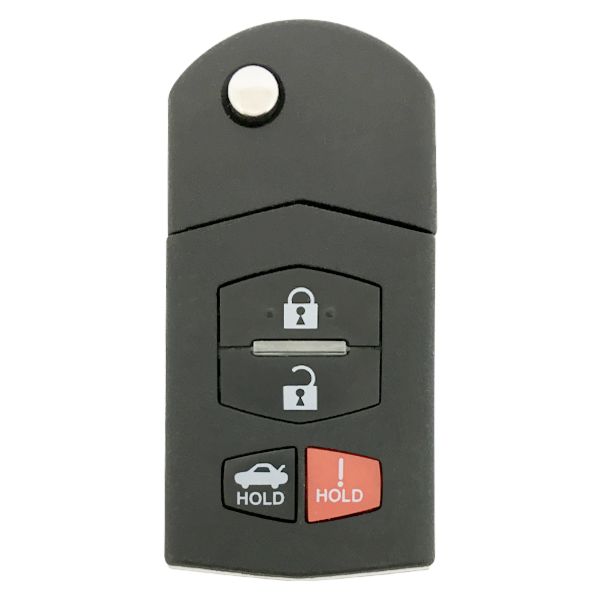

2009 - 2010 Mazda 6: 4 Button Remote Flip Key - Flip Key Attachment Included - 5WK43451E

Please contact us via phone (1-855-224-7258 EXT-3) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!

If our techs inform you that this product needs to be programmed by a Locksmith, you may do Google search here for 'automotive locksmith' followed by your zip code. We suggest calling Locksmiths to find the best rate for the programming and/or cutting service.

Use these instructions to program the key portion of the flip key.
Key blade must by cut to operate ignition

 You must have two working keys to program in the third key on your own, otherwise you must utilize an automotive locksmith for this procedure

The timing is critical to this procedure, please read through the entire procedure before attempting.

1. Insert one of the programmed transponder keys and turn the ignition to ON, leave on for at least one second (Wait until the red key symbol in the instrument cluster goes out), remove the key from the ignition.

2. Within 5 seconds insert the second programmed key and turn the ignition to ON for a least one second but no more than 5 seconds, then remove the second key.

3. Within 10 seconds insert the new key in the ignition and turn the ignition to ON, if you are successful the red key symbol will illuminate then go out in about 1 second.

If you are not successful the red key symbol will flash repeatedly to indicate that you have inserted an invalid key. Remove the key, wait one minute and try again.

Use these instructions to program the remote portion of your flip key.

1. Remove key from ignition
2. Close all doors.
3. Open drivers door.
4. Perform following steps within 24 seconds.
       A. Turn ignition switch ON and back to LOCK position three times
       B. Close and open drivers door three times
       C. Door locks should lock and unlock automatically, if they do not wait 40 seconds and repeat procedure starting at step 1.
5. Press UNLOCK button of each keyless remote to be programmed twice, door locks should lock and unlock after each remote is programmed.  If door locks do not lock and unlock proceed as follows.
        A. Close and open drivers door once, door should lock and unlock twice. If door locks do not lock and unlock, start  procedure over with step 3.
6. Exit vehicle and test remote(s)
