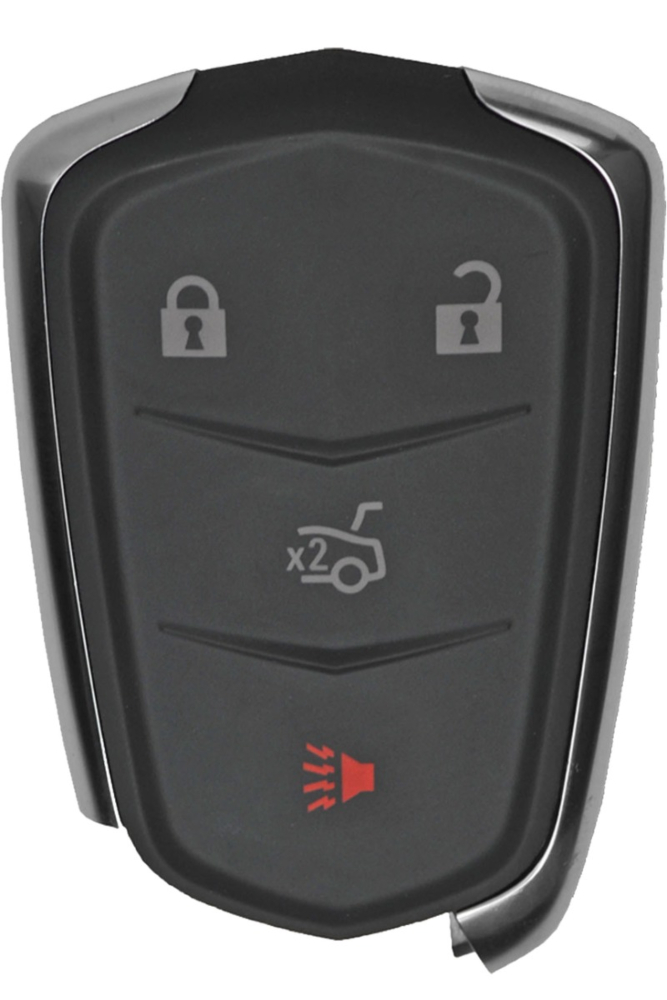

2014 - 2016 Cadillac 4 Button Smart Remote w/ Trunk - Emergency Key Included - HYQ2AB

2014 - 2016 Cadillac 4 Button Smart Remote w/ Trunk - Emergency Key Included - HYQ2AB

2014 - 2016 Cadillac 4 Button Smart Remote w/ Trunk - Emergency Key Included - HYQ2AB

2014 - 2016 Cadillac 4 Button Smart Remote w/ Trunk - Emergency Key Included - HYQ2AB
Dealer Price $259.87 Your Price $118.00 You save $141.87 That's 54.59% OFF dealer price!
Availability: In stock
SKU
5014

2014 - 2016 Cadillac 4 Button Smart Remote w/ Trunk - Emergency Key Included - HYQ2AB

*IMPORTANT* Please verify the Mhz on the back of your remote as the one you purchase and the one you currently have need to match.

EKey: 7275

Fits:

2015 - 2016 Cadillac ATS
2014 - 2016 Cadillac CTS
2015 - 2016 Cadillac XTS

More Information
SKU5014
FCC NumberHYQ2AB
OE Part #13594023
SupportYour purchase gives you 100% free e-mail and phone technical support from our expert staff.
180 Day Satisfaction Guarantee!If you are not 100% satisfied with your product for any reason, you may return the product within 180 days of ordering for a replacement. Please see our return policy for further info
Programming InformationThis remote comes with self programming instructions. You can view them under the 'Programming Instructions' tab.
Product ConditionRefurbished
Programming Instructions

Programming with a Recognized Transmitter

A new transmitter can be programmed to the vehicle when there is one recognized transmitter. To program, the vehicle must be off and all transmitters, both currently recognized and new, must be with you.


1. Remove the vehicle key from the recognized transmitter.

2. Place the recognized transmitter(s) in the cupholder.

3. Remove the key lock cylinder cap. Insert the vehicle key into the key lock cylinder on the driver door handle, then turn the key counterclockwise to the unlock position five times within 10 seconds.

The Driver Information Center (DIC) displays READY TO LEARN ELECTRONIC KEY #2, 3, 4, ETC.

4. Place the new transmitter into the transmitter pocket. The center console storage area will need to be opened to access the transmitter pocket.

5. Press the ENGINE START/STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the next transmitter.

6. Remove the transmitter from the transmitter pocket and press K or Q on the transmitter.

To program additional transmitters, repeat Steps 3–5. When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately 12 seconds to exit programming mode.

7. Return the vehicle key back into the transmitter.



Programming without a Recognized Transmitter

If there are no currently recognized transmitters available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes
to complete. The vehicle must be off and all transmitters to be programmed must be with you.


1. Remove the vehicle key from the transmitter.

2. Remove the key lock cylinder cap. Insert the vehicle key into the key lock cylinder on the driver door handle, then turn the key counterclockwise to the unlock position five times within 10 seconds.

The Driver Information Center (DIC) displays REMOTE LEARN PENDING, PLEASE WAIT.

3. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press the ENGINE START/STOP button. The DIC display will again show REMOTE LEARN PENDING, PLEASE WAIT.

4. Repeat Step 2 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps.

The DIC display should now show READY FOR REMOTE # 1.

5. Place the new transmitter in the transmitter pocket. The center console storage area will need to be opened to access the transmitter pocket.

6. Press the ENGINE START/STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the next transmitter.

7. Remove the transmitter from the transmitter pocket and press K or Q on the transmitter. To program additional transmitters, repeat Steps 4–6. When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately 12 seconds to exit programming mode.

8. Return the vehicle key back into the transmitter.
