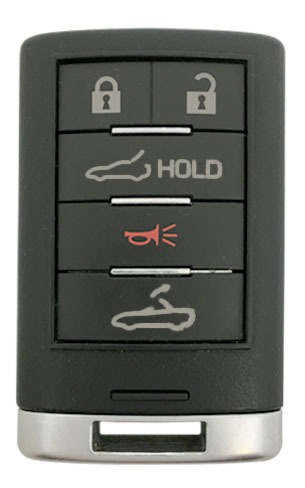

2014 - 2016 Chevrolet Corvette 5 Button Smart Remote - Emergency key included - G09C04EEC4P, G09C04EEC5C, G09C04EEC5T

Only RKE transmitters programmed to this vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and
programmed. The vehicle can be reprogrammed so that lost or stolen transmitters no longer work. Each vehicle can have up to eight transmitters programmed to it.

Programming with a Recognized Transmitter (2014 - 2015 Corvette)

A new transmitter can be programmed to the vehicle when there is one recognized transmitter.

1. The vehicle must be off and both the recognized and new transmitters must be with you.

2. Remove the key base from the recognized RKE transmitter.

3. Place the recognized transmitter in the cupholder.

4. Insert the vehicle key into the key cylinder above the license plate.

5. Open the hatch/trunk.

6. Turn the key fivetimes within 10seconds.

7. The DIC displays READY FOR REMOTE # 3 or 4, up to 8.

8. Place the new transmitter in the steering column transmitter pocket with the buttons facing up and the base toward the opening facing the passenger side.

9. Press the ENGINE START/ STOP button.

10. The DIC displays READY FOR REMOTE # 4 or 5, up to 8.

11. Press UNLOCK on each newly programmed transmitter to complete the process.

12. To program additional transmitters, repeat Steps 8– 11.

Press and hold the ENGINE START/STOP button for 12 seconds if programming is complete. Return the key base back into the RKE transmitter.

Programming without a Recognized Transmitter (2014 - 2015 Corvette)

If there are no currently recognized transmitters available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all transmitters to be programmed must be present.

1. The vehicle must be off.

2. Remove the key from the transmitter and insert the vehicle key into the key cylinder above the license plate.

3. Open the hatch/trunk.

4. Turn the key fivetimes within 10 seconds. The DIC message displays REMOTE LEARN PENDING PLEASE WAIT.

5. Return key base back into the RKE transmitter.

6. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN, then press the ENGINE START/ STOP button. The DIC reads REMOTE LEARN PENDING, PLEASE WAIT.

7. Repeat Step 6 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps. The DIC display should now show READY FOR REMOTE #1.

8. Place the new transmitter in the steering column transmitter pocket with the buttons facing up and the base toward the opening facing the passenger side.

9. Press the ENGINE START/ STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the new transmitter.

10. Remove the transmitter from the transmitter pocket and press UNLOCK or LOCK on the transmitter.

To program additional transmitters, repeat Steps 9– 10. When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately 12 seconds to exit programming mode.

Programming with Recognized Transmitters (2016 Corvette)

A new transmitter can be programmed to the vehicle when there are TWO recognized transmitters.

1. The vehicle must be off and both the recognized and new transmitters must be with you.

2. Place the two recognized transmitters in the cupholder.

3. Insert the vehicle key of the new transmitter into the key cylinder above the license plate.

4. Open the hatch/trunk.

5. Turn the key five times within 10 seconds.

6. The DIC displays READY FOR REMOTE # 3 or 4, up to 8.

7. Place the new transmitter in the steering column transmitter pocket with the buttons facing up and the bottom of the transmitter facing the passenger side.

8. Press ENGINE START/STOP.

9. The DIC displays READY FOR REMOTE # 4 or 5, up to 8.

10. Press UNLOCK on each newly programmed transmitter to complete the process.

11. To program additional transmitters, repeat Steps 7–10.

Press and hold ENGINE START/STOP for 12 seconds if programming is complete. Return the key back into the
RKE transmitter.

Programming without two Recognized Transmitters (2016 Corvette)

If TWO currently recognized transmitters are not available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all transmitters to be programmed must be present.

1. The vehicle must be off.

2. Remove the key from the new transmitter and insert the vehicle key into the key cylinder above the license plate.

3. Open the hatch/trunk.

4. Turn the key five times within 10 seconds. The DIC message displays REMOTE LEARN PENDING PLEASE WAIT.

5. Put the key back into the RKE transmitter.

6. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN, then press the ENGINE START/STOP button. The DIC reads REMOTE LEARN PENDING, PLEASE WAIT.

7. Repeat Step 6 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps. The DIC display should now show READY FOR REMOTE #1.

8. Place the new transmitter in the steering column transmitter pocket with the buttons facing up and the bottom of the transmitter facing the passenger side.

9. Press ENGINE START/STOP. When the transmitter is learned, the DIC display will show that it is ready to program the new transmitter.

10. Remove the transmitter from the transmitter pocket and press UNLOCK or LOCK on the transmitter. To program additional transmitters, repeat Steps 8– 10. When all additional transmitters are programmed, press and hold ENGINE START/STOP for approximately 12 seconds to exit programming mode.

11. Return the key back into the RKE transmitter.
