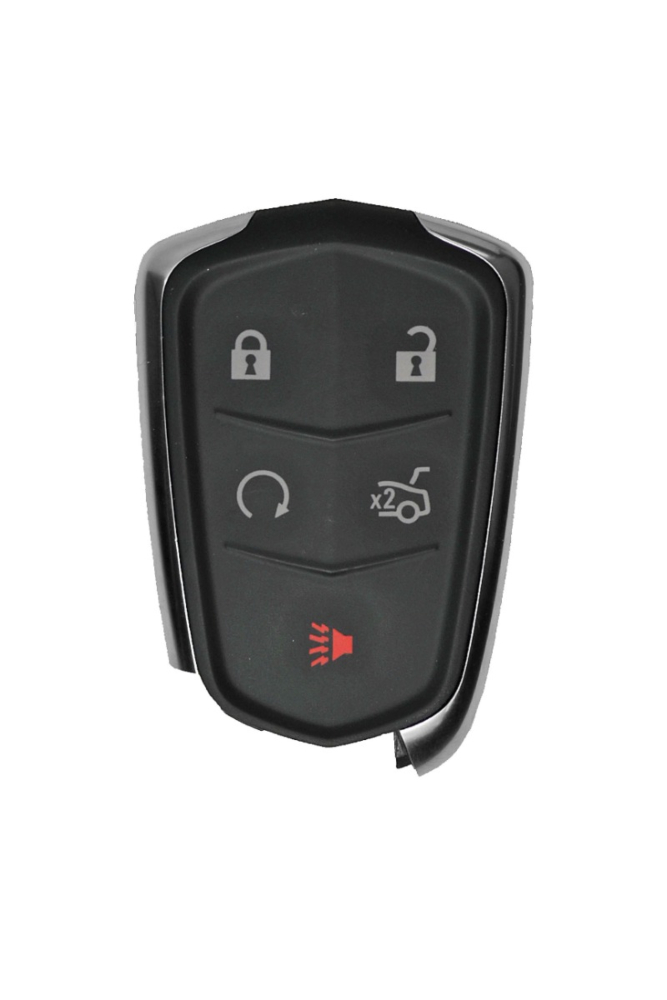

2014 - 2019 OEM Cadillac 5 Button Smart Remote w/ Trunk - Emergency key included - 315Mhz - HYQ2AB

Programming with a Recognized Transmitter

A new transmitter can be programmed to the vehicle when there is one recognized transmitter. To program, the vehicle must be off and all transmitters, both currently recognized and new, must be with you.

1. Remove the vehicle key from the recognized transmitter.

2. Place the recognized transmitter(s) in the cupholder.

3. Remove the key lock cylinder cap on the driver door handle. See Door Locks 0 37. Insert the vehicle key into the key lock cylinder on the driver door handle, then turn the key counter clockwise to the unlock position five times within10 seconds.
The Driver Information Center (DIC) displays READY FORREMOTE #2, 3, 4, ETC.

4. Place the new transmitter into the transmitter pocket. The center console storage area will need to be opened and the rubber mat needs to be removed to access the transmitter pocket.

5. Press the ENGINE START/STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the next transmitter.

6. Remove the transmitter from the transmitter pocket and press K or Q on the transmitter.

To program additional transmitters, repeat Steps 4–6.When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately12 seconds to exit programming mode.

7. Return the vehicle key back into the transmitter.

Programming without a Recognized Transmitter

If there are no currently recognized transmitters available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all transmitters to be programmed must be with you.

1. Remove the vehicle key from the transmitter.

2. Remove the key lock cylinder cap on the driver door handle. See Door Locks 0 37. Insert the vehicle key into the key lock cylinder on the driver door handle, then turn the key counter clockwise to the unlock position five times within10 seconds. The Driver Information Center (DIC) displays REMOTELEARN PENDING, PLEASE WAIT.

3. Wait for 10 minutes until the DIC displays PRESS ENGINESTART BUTTON TO LEARN and then press the ENGINESTART/STOP button. The DIC display will again show REMOTE LEARNPENDING, PLEASE WAIT.

4. Repeat Step 3 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps. The DIC display should now show READY FOR REMOTE# 1.

5. Place the new transmitter in the transmitter pocket. The center console storage area will need to be opened and the rubber mat needs to be removed to access the transmitter pocket.

6. Press the ENGINE START/STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the next transmitter.

7. Remove the transmitter from the transmitter pocket and press K or Q on the transmitter.

To program additional transmitters, repeat Steps 5–7.

When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately 12 seconds to exit programming mode.

8. Return the vehicle key back into the transmitter.
