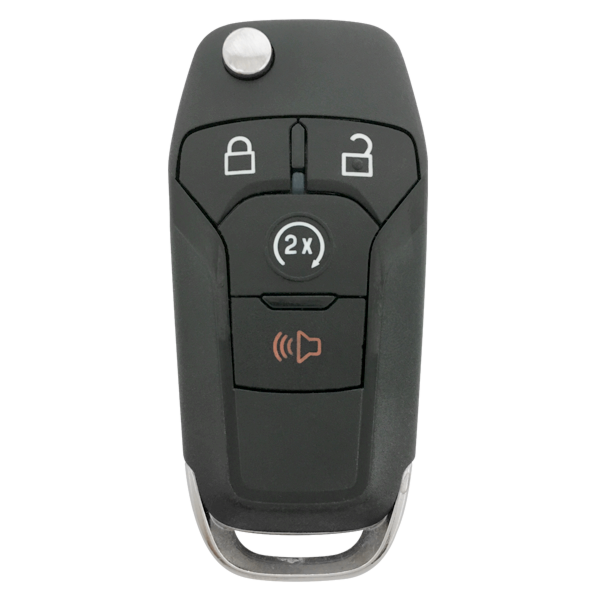

2015 - 2021 Ford 4 Button Flip Remote w/ Remote Start - 902MHz - N5F-A08TDA

Please contact us via phone (1-855-224-7258 EXT-3) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!

If our techs inform you that this product needs to be programmed by a Locksmith

Step by Step How to Program Instructions:

Use these instructions if your Ford F150 has the flip key system.

A maximum of eight keys can be programmed to your vehicle. Only SecuriLock keys can be used. To program a key yourself, you will need two previously programmed keys (keys that already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible for timely implementation of each step in the procedure.

You must have two working keys for procedure tp program a third device. If you do not have two working keys you will need to utilize your local automotive locksmith for programming.

Please read and understand the entire procedure before you begin.

1. Insert the first previously programmed key into the ignition and turn the ignition from the OFF position to the ON position (maintain ignition in the ON position for at least one second, but no more than 10 seconds).

2. Turn ignition from the ON position back to the OFF position in order to remove the first programmed key from the ignition.

3. After three seconds but within 10 seconds of removing the first  previously programmed key, insert the second previously programmed key into the ignition and turn the ignition from the OFF  position to the ON position (maintain ignition in the ON position for at least one second but no more than 10 seconds).

4. Turn the ignition from the ON position back to the OFF position in order to remove the second programmed key from the ignition.

5. After three seconds but within 10 seconds of removing the second programmed key, insert the new unprogrammed key (new key/valet key) into the ignition and turn the ignition from the OFF position to the ON position (maintain ignition in the ON position for at least one second, but no more than 10 seconds). This step will program your new key to a programmed key.

6. To program additional new unprogrammed key(s), repeat Steps 1 through 5.

If successful, the new programmed key(s) will start the vehicle’s engine and operate the remote functions.
