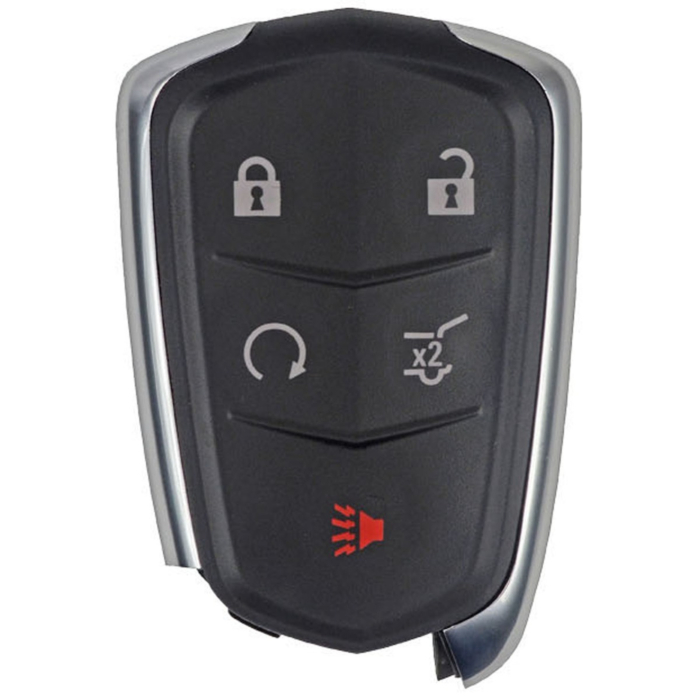

2017 - 2020 Cadillac 5 Button Smart Remote w/ Hatch - Emergency Key Included - 433Mhz - HYQ2EB

Dealer Price $298.99 Your Price $102.99 You save $196 That's 65.55% OFF dealer price!
Availability: In stock
SKU
7477

2017 - 2020 Cadillac 5 Button Smart Remote w/ Hatch - Emergency Key Included - 433Mhz - HYQ2EB

Ekey: 7275

Fits:

2019 - 2020 Cadillac XT4
2017 - 2019 Cadillac XT5



180 Day Satisfaction Guarantee!

If you are not 100% satisfied with your product for any reason, you may return the product within 180 days of ordering for a replacement. Please see our return policy for further information.



More Information
SKU7477
FCC NumberHYQ2EB
OE Part #13598516
SupportYour purchase gives you 100% free e-mail and phone technical support from our expert staff.
Programming Information

Please contact us via phone (1-855-224-7258 EXT-3) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!

If our techs inform you that this product needs to be programmed by a Locksmith, you may do Google search here for 'automotive locksmith' followed by your zip code. We suggest calling Locksmiths to find the best rate for the programming and/or cutting service.

Product ConditionRefurbished
Programming Instructions

How to Program a Cadillac XT5 Keyless Entry Remote Fob Smart Key
Programming with a Recognized Transmitter

A new transmitter can be programmed to the vehicle when there are two recognized transmitters. To program, the vehicle must be off and all of the transmitters, both currently recognized and new, must be with you.

  1. Place the two recognized transmitter(s) in the cupholder.
  2. Remove the key lock cylinder cap on the driver door handle. Insert the vehicle key of the transmitter into the key lock cylinder on the driver door and turn the key counterclockwise, to the unlock position five times within 10 seconds. The Driver Information Center(DIC) displays READY FOR REMOTE #2, 3, 4, ETC.
  3. Place the new transmitter into the transmitter pocket. The transmitter pocket is inside the center console storage area between the driver and front passenger seats. The storage area will need to be opened and the storage tray lifted up to access the transmitter pocket.
  4. Press ENGINE START/STOP.  When the transmitter is learned the DIC display will show that it is ready to program the next transmitter.
  5. Remove the transmitter from the transmitter pocket and press the transmitter unlock or lock button.

To program additional transmitters, repeat Steps 3–5. When all additional transmitters are programmed, press and hold ENGINE START/STOP for 12 seconds to exit programming mode. Return the key back into the transmitter.

Programming without a Recognized Transmitter

If two currently recognized transmitters are not available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take  approximately 30 minutes to complete. The vehicle must be off and all of the transmitters you wish to program must be with you.

  1. Remove the key lock cylinder cap on the driver door handle. Insert the vehicle key of the transmitter into the key lock cylinder on the driver door handle and turn the key, counterclockwise, to the unlock position five times within 10 seconds. The Driver Information Center (DIC) displays REMOTE LEARN PENDING, PLEASE WAIT.
  2. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press ENGINE START/STOP. The DIC displays will again show REMOTE LEARN PENDING, PLEASE WAIT.
  3. Repeat Step 2 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps. The DIC display should now show READY FOR REMOTE # 1
  4. Place the new transmitter into the transmitter pocket. The transmitter pocket is inside the center console storage area between the driver and front passenger seats. The storage area will need to be opened and the storage tray lifted up to access the transmitter pocket.
  5. Press ENGINE START/STOP.  When the transmitter is learned the DIC display will show that it is ready to program the next transmitter.
  6. Remove the transmitter from the transmitter pocket and press the transmitter unlock or lock button.

To program additional transmitters, repeat Steps 4–6. When all additional transmitters are programmed, press and hold ENGINE START/STOP for 12 seconds to exit programming mode.

  1. Return the key back into the transmitter.
