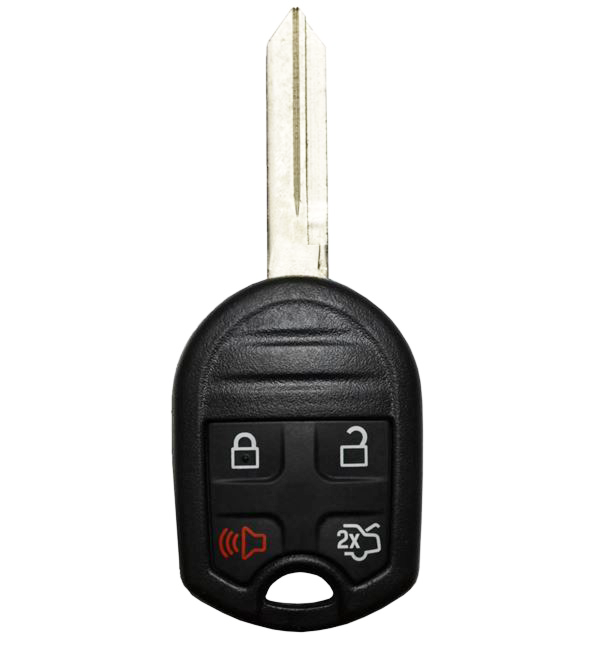

*NEW AFTERMARKET UNIVERSAL* Ford/Lincoln/Mercury/Mazda 4 Button Remote Head Key w/ Trunk - Standard Blade - OUCD6000022, CWTWB1U793, CWTWB1U722
This Universal Remote Head Key is Compatable with the Following FCC ID's:
This remote will only work for you if you have an OEM Remote Head Key Installed on your vehicle, This Universal remote will not work for you if you have a Different Type of RKE(Remote Keyless Entry) System Installed on your vehicle.
2010 - 2014 Ford Mustang
2007 - 2014 Ford Edge
2008 - 2012 Ford Escape
2009 - 2014 Ford Expedition
2007 - 2015 Ford Explorer
2007 - 2007 Ford Five Hundred
2009 - 2014 Ford Flex
2006 - 2012 Ford Fusion
2008 - 2013 Ford Taurus
2007 - 2009 Ford Freestyle
2007 - 2012 Lincoln MKZ
2007 - 2011 Lincoln Navigator
2007 - 2010 Lincoln MKX
2006 - 2006 Lincoln Zephyr
2008 - 2011 Mercury Mariner
2006 - 2011 Mercury Milan
2007 - 2007 Mercury Montego
2008 - 2010 Mercury Sable
2008 - 2011 Mazda Tribute
If you are not 100% satisfied with your product for any reason, you may return the product within 180 days of ordering for a replacement. Please see our return policy for further information.
|FCC Number||OUCD6000022, CWTWB1U793, CWTWB1U722|
|OE Part #||N/A|
|Support||Your purchase gives you 100% free e-mail and phone technical support from our expert staff.|
Please contact us via phone (1-855-224-7258) or live support chat to the bottom right of our website to confirm programming for this product. Our techs will make sure you know everything you need to!
If our techs inform you that this product needs to be programmed by a Locksmith
Remote Head Key Programming.
You Must have Two Working Transponder Keys (keys that start your car) to perform this procedure. If you only have one working key or none at all it must be programmed by a dealer or locksmith! Your New third (unprogrammed) key must also be cut prior to performing this procedure. If you have a key from a Hardware Store this is a clone key and will not work.
1. Insert an existing (working) key into the ignition cylinder.
2. Turn the ignition cylinder ON (Position 3) and back to OFF (Position 1). Ignition should stay in ON position for at least three seconds but no more than ten seconds.
3. Remove the existing key and WITHIN TEN SECONDS, insert a second working key and turn to ON and then back to OFF. Ignition should stay in ON position for at least three seconds but no more than ten seconds.
4. Remove the second key, insert the New (unprogrammed) key before twenty seconds have elapsed and turn to ON. Leave it in the ON position for at least six seconds and turn back to OFF.
5. If the new key has been successfully programmed it will start the vehicle and operate the remote keyless entry system. The theft indicator light will light up for three seconds to indicate the key was successfully programmed.
*If the new key was not successfully programmed, repeat steps 1-4. If the remote portion of the remote did not program but the key will start the vehicle, then please perform the procedure below to program the remote portion of your remote head key.
Three or Four Button Remote Programming Instructions.
Obtain all remote transmitters for this vehicle. It's not necessary to re-program your working remote head keys as those will continue to work. If you are programming additional non-remote head key remotes for your vehicle then they must all be programmed during this procedure. You are able to program up to Four remotes in addition to your remote head keys.
Do not depress the brake pedal during procedure.
Turn ignition from OFF to RUN 8 times within 10 seconds, with the 8th time ending in RUN. Door locks will cycle to confirm programming mode. (Off is the position where you can remove your key, RUN is the postion just shy of starting your car.)
